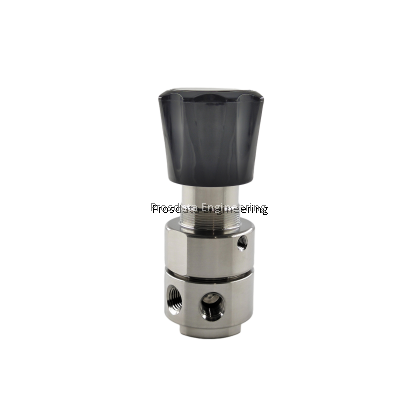

TESCOM 44-22P0 Series Pressure Reducing Regulator - Nickel Plated Brass
RM1,218.00
TESCOM 44-22P0 Series Pressure Reducing Regulator - Nickel Plated Brass
Price RM1,218.00
Product SKU TESCOM/44-2200/NickelPlatedBrass
Brand TESCOM
Availability 73
Inlet // Outlet Pressure
8 left
16 left
2 left
26 left
9 left
10 left
2 left
Quantity
Description
Part Number Body Material Diaphragm Material Seat Material Max. Inlet Pressure Outlet Pressure Inlet & Outlet Connection Flow Capacity
44-22P0-242-1038 Brass Nickel Plated 316 Stainless Steel Teflon 400 PSIG 0 To 25 PSIG 1/4" NPTF Cv=0.15
44-22P1-242-1038 Brass Nickel Plated 316 Stainless Steel Teflon 400 PSIG 0 To 50 PSIG 1/4" NPTF Cv=0.15
44-22P2-242-1038 Brass Nickel Plated 316 Stainless Steel Teflon 400 PSIG 0 To 100 PSIG 1/4" NPTF Cv=0.15
44-22P6-242-1038 Brass Nickel Plated 316 Stainless Steel Teflon 400 PSIG 0 To 150 PSIG 1/4" NPTF Cv=0.15
With Outlet Gauges Port At 90 Degree (Option 1038)
Without Pressure Gauges

Part Number Body Material Diaphragm Material Seat Material Max. Inlet Pressure Outlet Pressure Inlet & Outlet Connection Flow Capacity
44-22P2-241-1037 Brass Nickel Plated 316 Stainless Steel Teflon 3,500 PSIG 0 To 100 PSIG 1/4" NPTF Cv=0.06
44-22P3-241-1037 Brass Nickel Plated 316 Stainless Steel Teflon 3,500 PSIG 0 To 250 PSIG 1/4" NPTF Cv=0.06
44-22P4-241-1037 Brass Nickel Plated 316 Stainless Steel Teflon 3,500 PSIG 0 To 500 PSIG 1/4" NPTF Cv=0.06
With Standard Inlet & Outlet 1/4" Gauge Port
Without Pressure Gauges





Applications
• Laboratory and point-of-use gas systems
• Sampling systems, zero, span and calibration analyzer gases
• Specialty and industrial gas cylinder regulator
• Chromatograph flame detector fuel supply


Features and Benefits
• Compact
• Designed to minimize contamination and provide accurate regulation of any corrosive,
non-corrosive, or toxic gas
• Brass model provides added economy for control of non-corrosive media
• Metal-to-metal diaphragm to body seal ensures minimum inboard and outboard leakage
• Convoluted diaphragm delivers excellent accuracy and long service life
• Panel mounting is available
• 300 Series Stainless Steel or Brass bonnet
• NACE compliant designs are available





Click here to download full catalogue!

For other range, please contact us or drop us your enquiry by email.
