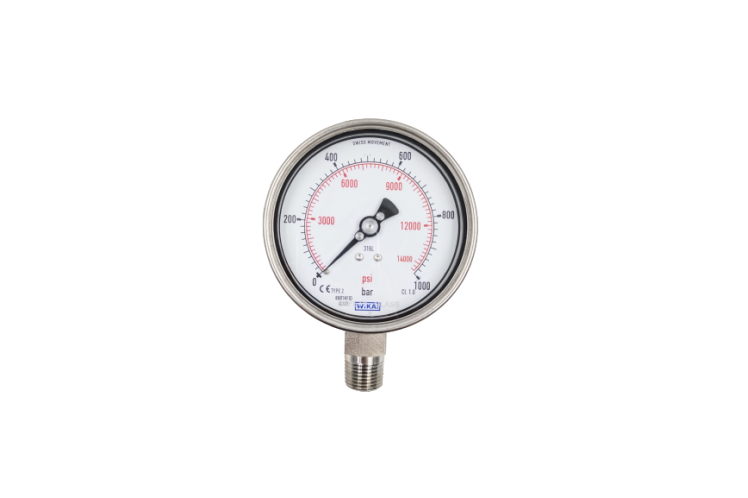

WIKA Bourdon Tube (Fully Stainless Steel) Pressure Gauge - Model 232.50 / 233.50

WIKA BOURDON TUBE PRESSURE GAUGE, 232.50 / 233.50

·         With liquid-filled case for applications with high dynamic pressure pulsations or vibrations

·         For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience

·         Process industries: chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology,machine building and plant construction



Special Features

·         Excellent load-cycle stability and shock resistance

·         All stainless steel construction

·         German Lloyd and Gosstandart approval

·         Scale ranges up to 0 … 1600 bar

·         Can be combined with diaphragm seals



Description

Nominal size in mm
63, 100, 160

Accuracy class
NS 63:           1.6
NS 100, 160: 1.0

Scale ranges
NS 63: 0 … 1 to 0 … 1000 bar
NS 100: 0 … 0.6 to 0 … 1000 bar
NS 160: 0 … 0.6 to 0 … 1600 bar
or all other equivalent vacuum or combined pressure and vacuum ranges
