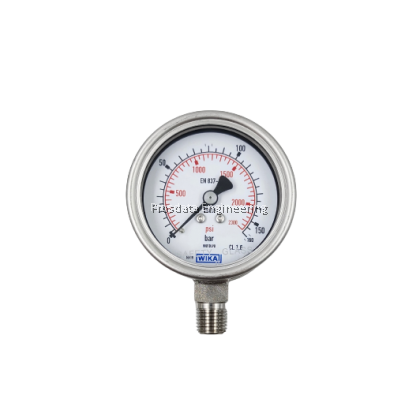

WIKA Fully Stainless Steel Pressure Gauge: 232.50.63 With/Without Liquid Filling. Connection Type: 1/4" NPT (Bottom Connection) Scale Reading: Bar/Psi

Description

Please indicate at the remark column upon checkout:

With / Without Liquid Filling
Pressure range that need Calibration Service (kindly add calibration service to cart)
- Calibration service need additional 2-3 days to be delivered.

Model : 232.50.63
Dial Size : 2-1/2" (63mm)
Material : Casing - SS 304
Pressure Element - SS 316
Connection : 1/4" NPT Bottom

Pressure Range:

-760 mmHg To 0 mmHg (-30"Hg To 0" Hg) - Vacuum
0 To 1 Bar (0 - 14 PSI)
0 To 1.6 Bar (0 To 23 PSI)
0 To 2.5 Bar (0 To 35 PSI)
0 To 4.2 Bar (0 To 60 PSI)
0 To 6 Bar (85 PSI)
0 To 7 Bar (0 To 100 PSI)
0 To 10 Bar (0 To 140 PSI)
0 To 14 Bar (0 To 200 PSI)
0 To 16 Bar (0 To 230 PSI)
0 To 21 Bar (0 To 300 PSI)
0 To 25 Bar (0 - 360 PSI)
0 To 35 Bar (0 - 500 PSI)
0 To 42 Bar (0 To 600 PSI)
0 To 60 Bar (0 To 870 PSI)
0 To 70 Bar (0 To 1000 PSI)
0 To 100 Bar (0 To 1450 PSI)
0 To 160 Bar (0 To 2300 PSI)
0 To 250 Bar (0 To 3600 PSI)
0 To 350 Bar (0 To 5000 PSI)
0 To 420 Bar (0 To 5800 PSI)
0 To 700 Bar (0 To 10,000 PSI)

Click here to download full catalogue!

For other range, please contact us or drop us your enquiry by email.

Price	RM194.30 - RM259.30
Product SKU	2325063/BARPSI-1/4"NPTL
Brand	WIKA
Availability	641

Range	-760 mmHg (-30"Hg) - Vacuum 102 left 1 Bar/Psi 31 left 1.6 Bar/Psi 30 left 2.5 Bar/Psi 20 left 4.2 Bar/Psi 48 left 6 Bar/Psi 25 left 7 Bar/Psi 24 left 10 Bar/Psi 40 left 14 Bar/Psi 50 left 16 Bar/Psi 25 left 21 Bar/Psi 42 left 25 Bar/Psi 20 left 35 Bar/Psi 16 left 42 Bar/Psi 25 left 60 Bar/Psi 16 left 70 Bar/Psi 20 left 100 Bar/Psi 15 left 160 Bar/Psi 17 left 250 Bar/Psi 5 left 350 Bar/Psi 26 left 420 Bar/Psi 24 left 700 Bar/Psi 20 left
Quantity
